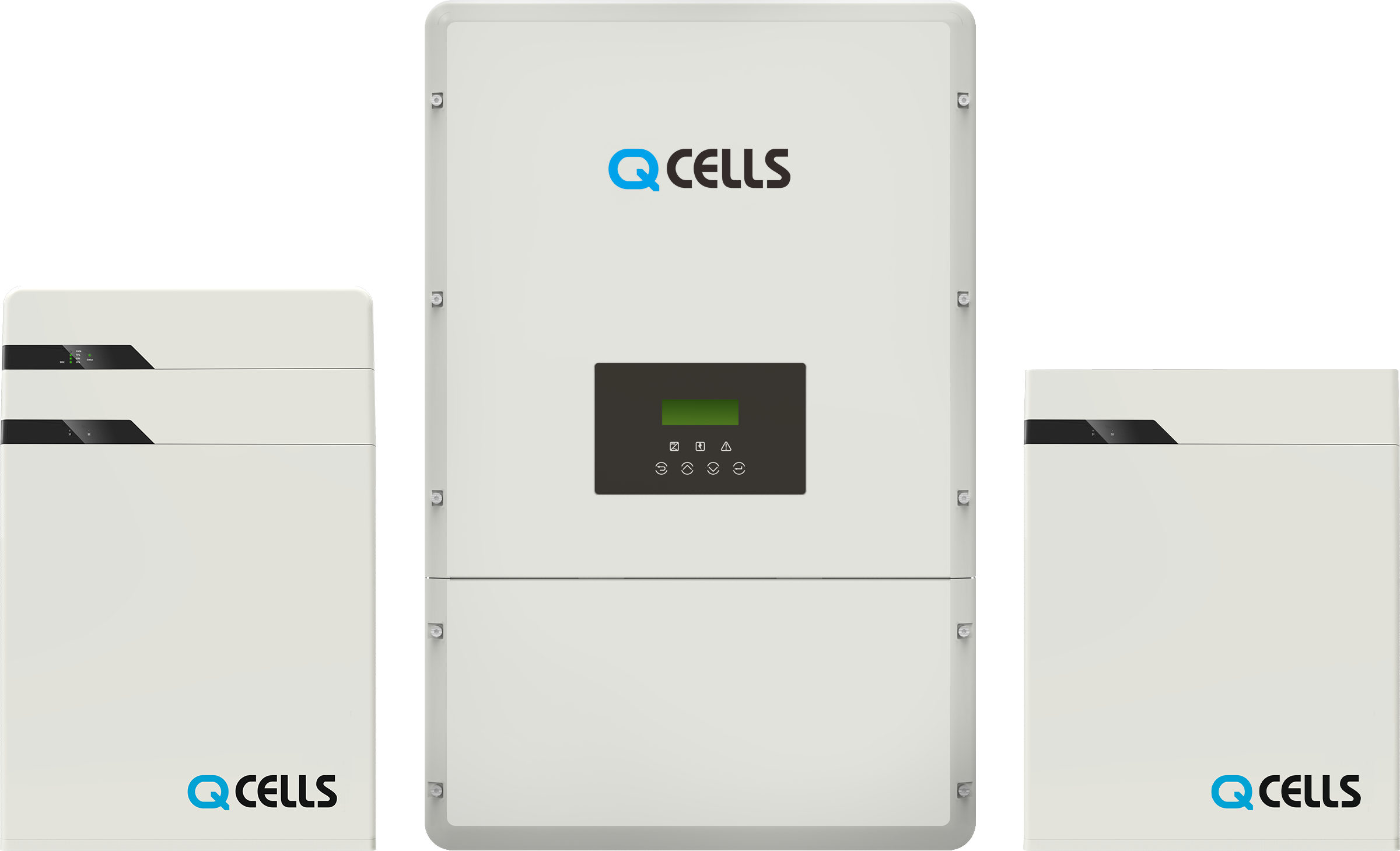

Q.HOME+ ESS HYB-G1
Modular energy storage solution for North America

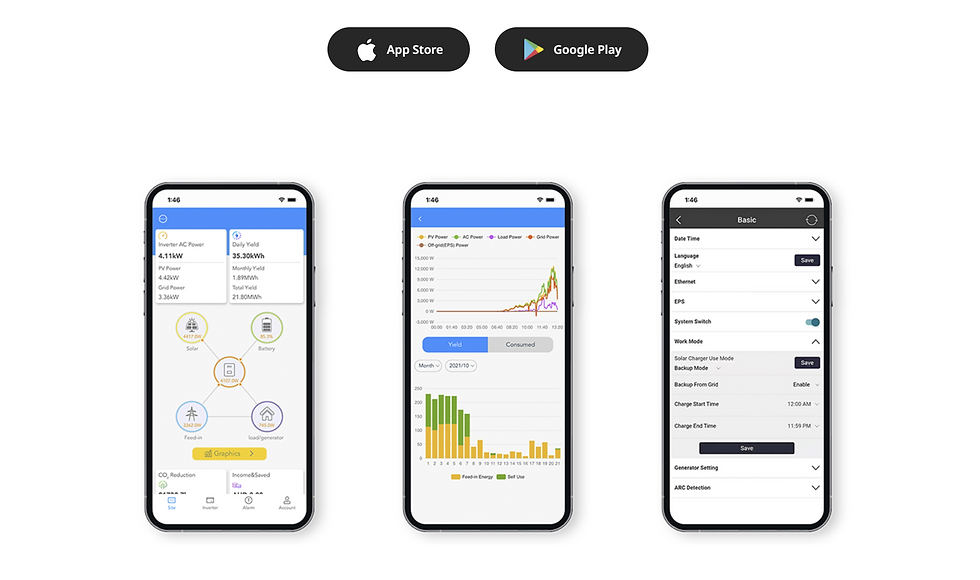

The Q.HOME⁺ ESS HYB-G1 energy storage solution offers scalable storage capacity from 4.5 kWh up to 18.9 kWh and comes in a modular design for easy and fast installation. The system can connect up to three batteries in series using only one inverter and battery management system (BMS). The system includes an integrated backup power function for 100% of the rated inverter output to support critical loads in the event of power failure and offers remote monitoring using the Q.HOME⁺ web portal or Q.HOME⁺ ESS mobile app.

Q.HOME+ ESS HYB-G1

$21,950.00Price

  • PERFORMANCE

    Storage Capacity (Max.efficiency)
      4.5kWh up to 18.9kWh
    PV DATA (DC) Max. input power
      7.2kW up to 10.32kW
    BATTERY DATA (DC) Max. power
      8.3kW with three battery modules
    BACKUP POWER OUTPUT (AC) Max. output power
      6.6kW up to 8.3kW



    EFFICIENCY

    Solar System to Grid (Max efficiency)
      96.7%
    Solar System to Battery (Max efficiency)
      98.3%
    Battery to Grid (Max efficiency)
      96.5%



    DESIGN

    Inverter Format / Weight
      36 × 22 × 10.9 in / 130 lbs
    Storage Format / Weight
      18.3 × 7.6 × 23.1 in / 124.8 lbs
    Mounting
      Wall-mounted
    Color
      Natural



    MAINTENANCE

    Communications
      RS485/LAN/CAN 2.0/WiFi/4G (optional)
    Remote Monitoring
      Web & Mobile App
    Software Update
      Local USB/Remote Web
